Spirotrac 6 Software

Powerful and flexible diagnostic workstation software, with the ability to integrate with EMR systems.


Vitalograph Spirotrac® 6 is a powerful and flexible diagnostic workstation software, with the ability to integrate test results with electronic medical record (EMR) systems. Suitable for general healthcare and occupational health environments.

Featuring a new user interface design based on customer feedback, Spirotrac is now even more intuitive and easy-to-use. It allows you to consolidate Spirometry, Respiratory Muscle Strength (RMS), Maximum Voluntary Ventilation (MVV), FENO ECG and Oscillometry through a single, flexible, and powerful application solution. Filing and storing results could not be simpler with fast connection to your EMR system.

Spirotrac 6 is compliant with the latest ATS/ERS 2019 guidelines and is compatible with the new range of Vitalograph products including the PC based Pneumotrac for spirometry, Pneumotrac RMS for respiratory muscle strength, the BT12 for 12 lead resting ECG and the Vitalograph tremoflo® C-100 for oscillometry.


Product Code: 70902

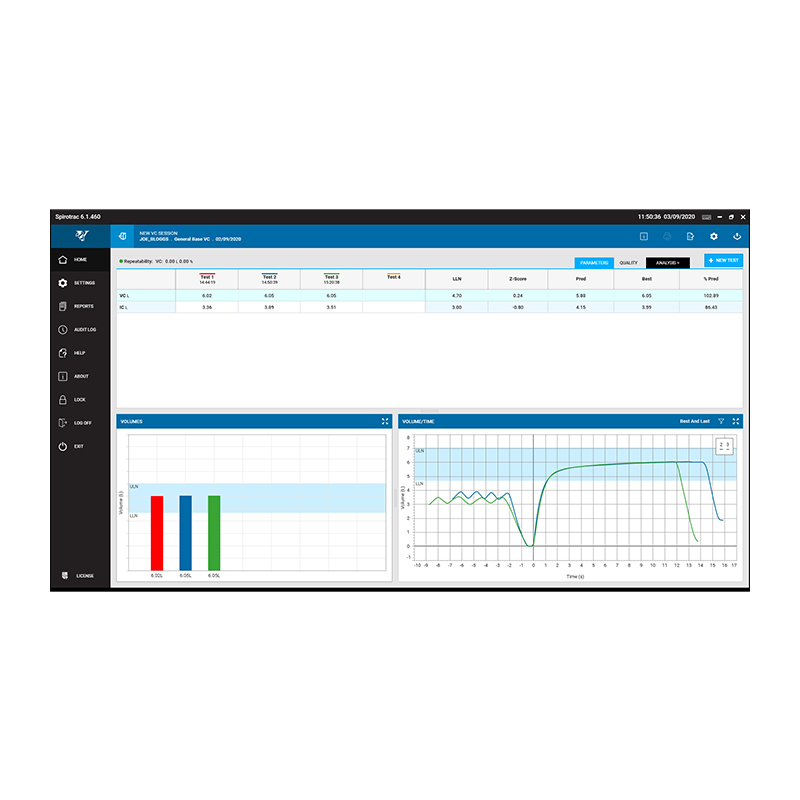

  • VC, FVC, Bronchodilator Responsiveness Testing and Challenge Testing.
  • Uses recommended latest NHANES and GLI spirometry predicted equations with LLN, %Pred and Z-scores for accurate assessment of abnormality.
  • Achieve the best possible results with enhanced quality assurance:
    • Featuring ATS/ERS 2019 grading system for acceptability
    • Live onscreen repeatability feedback (volume and percent)
    • Z-score pictogram for fast and easy comparison of results to predicted values
    • High quality incentives to help improve subject cooperation and performance
    • New filtering options for graphs allow the operator to select which trials to display (Show All, Show Best, Show Best 3, Show Best and Last)
    • Automatic interpretation based on latest ATS/ERS & GOLD standards
  • Save time and ensure consistency using the Standardised Operator Comments to quickly add review comments to the subject record.
  • Monitor historical changes in lung function by comparing results and view trends over time.


Respiratory Muscle Strength Testing

  • Real-time display of pressure/time curves with the Pneumotrac RMS.
  • Assess diaphragmatic weakness, assess respiratory muscle strength and monitor the response of respiratory muscle training with our full range of respiratory diagnostic tests:
    • Maximum Voluntary Ventilation (MVV)
    • Maximum Inspiratory Pressure (MIP)
    • Maximum Expiratory Pressure (MEP)
    • Sniff nasal inspiratory pressure (SNIP)
    • Upright and Supine Spirometry (VC and Post VC)
    • Peak Cough Flow (PCF)


12-lead Resting ECG

  • Accurate and detailed results based on University of Glasgow interpretation algorithm.
  • Transmits ECG traces wirelessly reducing lead artifact.
  • Display ECG trace in real-time with multiple options for viewing and printing.


Consolidate your data from other Vitalograph Devices.

Subject data can be uploaded to the device from Spirotrac 6 saving the end user precious time from re-entering subject information. Spirometry test data can be downloaded from the device to Spirotrac 6 for trending, detailed reporting, and centralisation.



Detect the presence of small airway impairment using the Vitalograph C-100 oscillometry device which is integrated in the Spirotrac 6 platform.

  • Collate and manage all respiratoy diagnostic data through one interface to obtain a complete clinical picture of a subject’s respiratory health.


Configurable Reports

  • Customize reports and choose which parameters to display.


Advanced database

  • Create and assign subjects to groups, perfect for multiple test sites and Occupational Health


Vitalograph Connect

  • Middleware software linking EMR systems with Vitalograph products including Spirotrac.
  • Eliminate errors and improve workflow with subject details automatically transferred from clinical system to Spirotrac.
  • Enhanced data safety.
  • Save precious time as read codes and test reports (PDF format) are automatically filed to the correct subject’s medical record. No need to scan reports!



  • Spirotrac software is constantly updated with new features and benefits. To find out the latest additions, and for a complete history of updates click here.


ProductVitalograph Spirotrac
Performance Standards & GuidelinesATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009
QA/GMP standardsEN ISO 13485, FDA 21 CFR 820, CMDR
  • Processor Speed: 2.00 GHz or faster
  • RAM: 2GB (Min), 4GB (Recommended)
  • Disk Space: If the .NET version 4.8 framework is not already installed this will require an additional 2 Gigabyte of hard disk space. If SQL Server Express is not already installed this will require an additional 1 Gigabyte of hard disk space
  • Operating System: Microsoft Windows 10, Microsoft Windows 11
  • Microsoft .NET Framework 4.8
  • USB port for Pneumotrac or other compatible devices
  • A monitor that supports a screen resolution of 1280 x 800 pixels.
  • Bluetooth support for the BT-12 ECG device
Test Types SupportedSpirometry: Single breath testing, multi-breath testing, tidal breathing. VC, FVC, PCF, Bronchodilator Responsiveness and Challenge Testing.
Respiratory Muscle testing: MIP, MEP, SNIP, MVV, SNIP
ECG: 12 lead 10 second trace
Oscillometry ParametersR5, R7, R5-20, R7-20, AX, VT
FVC ParametersFVC, FEV1, FEV1Q, FEV6, FEV1/FVC, FEV1/FEV6, FEV1 Ratio, PEF (L/s), PEF(L/min), FIVC, PIF (L/s) , PIF (L/min), EF25-75, TV, IRV, ERV, IC, EV, TExt, TPef, FET, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FVC, FEV3, FEV3/FVC, FEV6/FVC, FEF0.2-1.2, FEF75-85, FEF2575/FVC, FEF25, FEF50, FEF75, FEV1/PEF, FIF25, FIF50, FIF75, FIF50/FEF50, FIVC/FVC, FIV1, FEV1/FIVC, FIV1/FIVC, FIV1/FVC, FEF50/FIF50, MVVind, EV/FVC, FMFT, IVC, FEV1/IVC, FEFmax, EOTV , FEV1/HT2, FEV1/VC, FEV3/VC, RAWind, RV, FRC, TLC, Lung Age, EOTV, THes, Rise Time
VC ParametersVC, IVC, EVC, TV, IC, ERV, TLC, FRC, RV
ECG ParametersHR[/min] HR[/min] Heart Rate RR[ms] R-R interval P[ms] Duration of the P wave PQ[ms] Duration of the PQ interval ST[ms] Duration of the ST segment PR[ms] Duration of the PR interval QRS[ms] Duration of the QRS complex QT[ms] Q-T interval QTc[ms] Q-T interval, corrected by the heart rate with options Fridericia, Framingham, Bazett and Hodges
Predicted Values SelectableGLI (Quanjer 2012), NHANES, ERS 93, GLI Race Neutral
Suggested InterpretationATS/ERS Gold
DatabaseMS SQL server
Device classificationIIa per Annex IX of the MDD
EMR ConnectivityHL7, GDT
Export OptionsPdf reports
Import OptionsSpirotrac V Database Migration
IncentivesCandles, Ball and Tube, Big Bad Wolf
TrendingAutomatic FEV1 trend. Additional parameters also available.
ReportingComprehensive configurable PDF reports

Product Specification


Yes, the Spirotrac software is integrated with the NIOX’s FENO device

Yes. Post VC and Post FVC testing can take place with the option to include all Post data on one report.

Yes. Vitalograph Connect (included) supports major EMRs that use the HL7 specifications.

Yes a powerful reporting tool is included that makes it possible to configure a report to your own preferences using the supplied templates.

An interpretation based on a combination of ATS/ERS and GOLD standards is provided within Spirotrac.
