Pneumotrac with RMS
An enhanced diagnostics solution that combines highly accurate Respiratory Muscle Strength and Spirometry testing in one robust, portable device.
The Pneumotrac™ with RMS (Respiratory Muscle Strength) is a PC-based system that combines Respiratory Muscle Strength measurements and Spirometry – offering multiple testing possibilities on a single device, as portable as your laptop. It can be used in various settings such as in-clinic on a desk or placed on a trolley with a laptop for use at the bedside.
Alongside detailed spirometry testing, it provides a non-invasive and simple approach to mouth pressure and nasal pressure measurements in both adults and paediatrics. It can be used to:
assess diaphragmatic weakness in patients with neuromuscular disease (NMD)
assess respiratory muscle strength in patients undergoing pulmonary rehabilitation e.g., COPD patients
monitor the response of respiratory muscle training
The Pneumotrac with RMS has all the benefits of the market leading Pneumotrac Spirometer with the addition of respiratory muscle strength measurements.
Diagnostics | Pneumotrac with RMS | Standard Pneumotrac |
|---|---|---|
Maximum inspiratory Pressure (MIP) | ✓ | |
Maximum Expiratory Pressure (MEP) | ✓ | |
Sniff Nasal inspiratory Pressue (SNIP) | ✓ | |
Upright & Supine Spirometry (VC and Post VC) | ✓ | ✓ |
Peak Cough Flow (PCF) | ✓ | ✓ |
Forced Vital Capacity (FVC) and Post Bronchodilator | ✓ | ✓ |

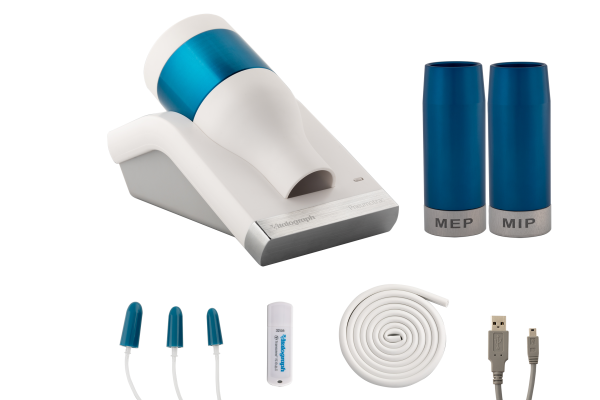

The Pneumotrac with RMS comes with:
MIP MEP flowheads
Spirotrac 6 Software
Protective carry pouch
USB cable
The Pneumotrac with RMS has all the benefits of the market-leading Pneumotrac Spirometer with the addition of respiratory muscle strength measurements.
This device comes with a Free 5-Year Warranty including unlimited technical support when registered within 30-days of purchase.
Vitalograph provides free certified training for all of its respiratory diagnostic solutions. Register here.
Click here for reimbursement codes for Vitalograph Devices in the USA.
Be free to help your patients perform spirometry
The Pneumotrac with RMS has an integrated V-Core™ flowhead, allowing you to focus on helping your patients achieve their best spirometry test, confident that you are capturing accurate and reproducible results.
Find out more about V-Core flowhead technology
Optional Extras / Consumables
Model Number | Product Number | Product Description | Quantity in box |
2820 | Eco BVF + Silicone Bite-On Mouthpiece + Disposable Nose Clip | 60 | |
28553* | Eco BVF with Plastic Bite Lip + Disposable Nose Clip | 75 | |
Eco BVF with Plastic Bite Lip | 75 | ||
28572* | Eco BVF for Office Spirometers + Disposable Nose Clip | 80 | |
Eco BVF for Office Spirometers | 100 |
*available to order.
Easily Interpreted Results:
Overlay of successive curves for consistent results.
Multiple options for displaying graphs.
Fast evaluation of results with %Predicted comparison.
Customisable pdf reports.
Monitor historical changes in lung function by comparing results and view trends over time. Trend MIP, MEP, SNIP, and VC on the one chart for a complete history.
Onscreen Testing Guidance:
Instant test quality feedback as per ATS/ERS Technical Standards ensuring maximum pressure sustained for 1 second can be recorded.
Repeatability feedback for rapid and easy testing.
Real-time display of pressure/time curve on Spirotrac 6 software.
Exceptional Test Accuracy:
A high resolution of 0.1 cmH20 has superior accuracy when compared to similar devices.
Hygienically Efficient:
Low running costs and environmentally friendly: no costly disposable sensors, turbines, or flow tubes.
Single-use Vitalograph Bacterial Viral Filters (BVF™) with validated cross-contamination efficiency >99.999%, protect device, patient, and operator.
| Vitalograph Pneumotrac with RMS | |
|---|---|
| Model Number | 6800 |
| MIP MEP SNIP Measurement Range | +/- 300 cmH2O |
| MIP MEP SNIP Accuracy: | +/- 3% |
| Resolution | 0.1 cmH20 |
| RMS Test Types | MIP, MEP, SNIP, PCF |
| Predicted Sets | Wilson, Stefanutti/Uldry/Fitting |
| Flow Detection Principal | Fleisch flow technology |
| Volume Accuracy | Within ±2.5% |
| Flow Measurement Range | Max. flow rate ±960 L/min (±16 L/s) Min. flow rate ±1.2 L/min (±0.02 L/s) |
| PEF Accuracy | Within ±10% |
| Back pressure | Less than 0.1kPa/L/second @ 14L/s |
| Performance standards & guidelines | ATS/ERS 2019 Technical Standards, ISO 23747:2015 & ISO 26782:2009 |
| Safety standards | EN60601-1:2006 + A1:2013, EN 60601-1-2:2015 |
| QA/GMP standards | EN ISO 13485, FDA 21 CFR 820, SOR/98-282 JPAL MDSAP |
| Dimensions | 160mm (length) x95mm (width) x 115mm (height) |
| Weight | 550g |
| Power Supply | 5V DC via USB |
| Spirotrac 6 Software Specification | Spirotrac 6 Software |
FAQs
Are the standard Pneumotrac and the Pneumotrac with RMS two different products?
AddYes, the Pneumotrac with RMS is different from the standard Pneumotrac in that it contains extra hardware and an extra connection port to perform the respiratory muscle measurements of MIP, MEP, and SNIP.
Can I update the standard Pneumotrac to the RMS device at a later stage?
AddNo, the Pneumotrac with RMS contains additional hardware with an extra connection port on the base unit that enables you to use the MIP, MEP flowheads and the SNIP nasal probes for respiratory muscle measurements.
Does the Pneumotrac with RMS require cleaning?
AddWhere a new BVF is used for each subject, only the Fleish flowhead, MIP flowhead and MEP flowhead which comes into contact with subjects being tested, requires low level cleaning. For cleaning instructions refer to Hygiene & Cleaning Instructions
How do I decontaminate the Pneumotrac flowheads?
AddThe interior of a flowhead does not require decontamination where a new BVF is used for each subject. However, if there is a possibility of contamination, it is possible to decontaminate the flowhead following Hygiene & Cleaning Instructions
