A portable airwave oscillometry solution that provides diagnostic information about small airway dysfunction.
Enhance your respiratory diagnostic capabilities with airwave oscillometry
The small airways are often involved early in the course of pulmonary diseases, with significant pathologies often demonstratable prior to the onset of symptoms. Airwave oscillometry (AOS) is a respiratory diagnostic test that provides specific information about small airway function.
In the case of COPD, using sensitive diagnostics tests such as oscillometry may allow an earlier diagnosis, improve therapeutic options, and might open new doors for preventative medicine. Ideal for younger, older or frail patients, airwave oscillometry requires simple tidal breathing to perform a test and is very easy to perform, for both patient and practitioner.

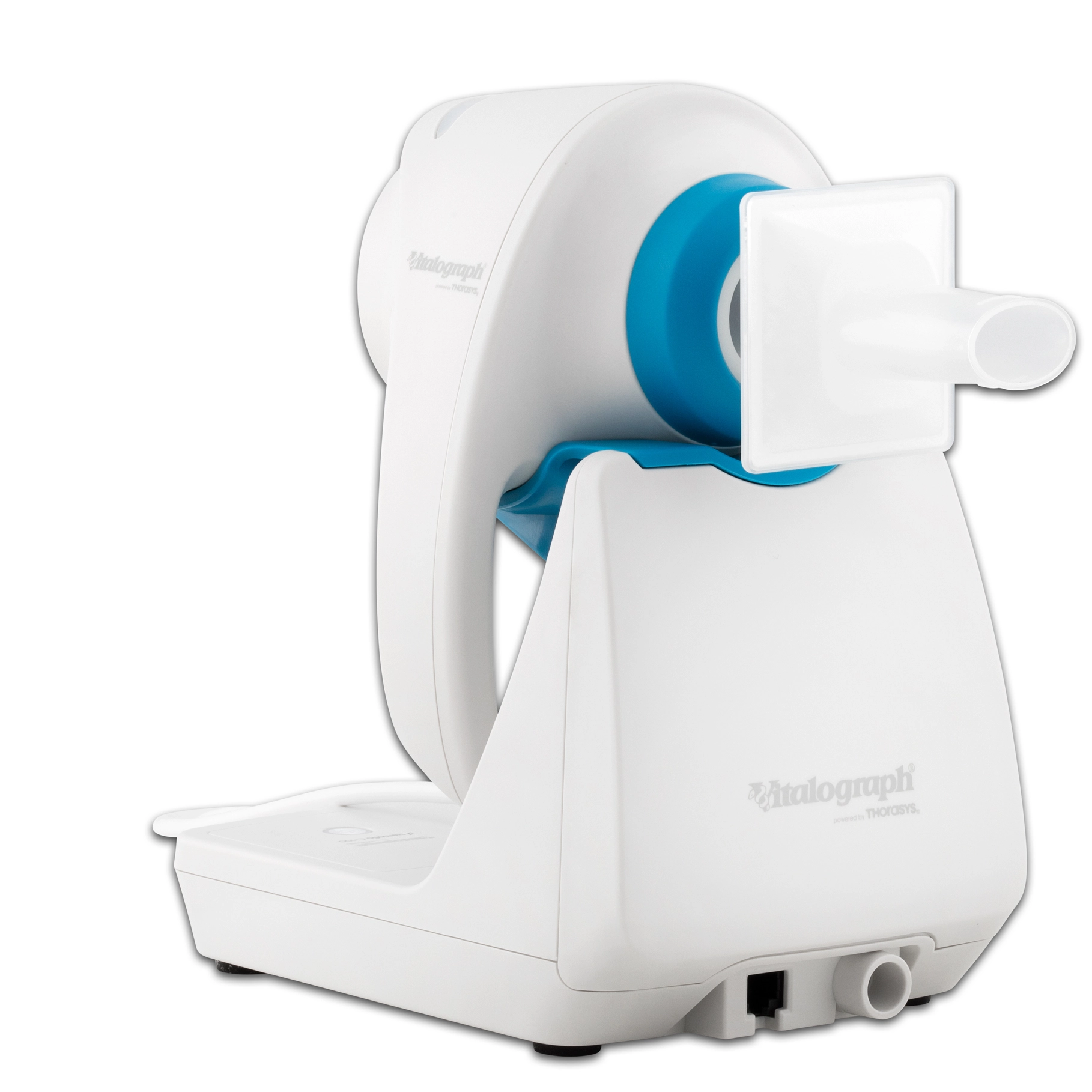

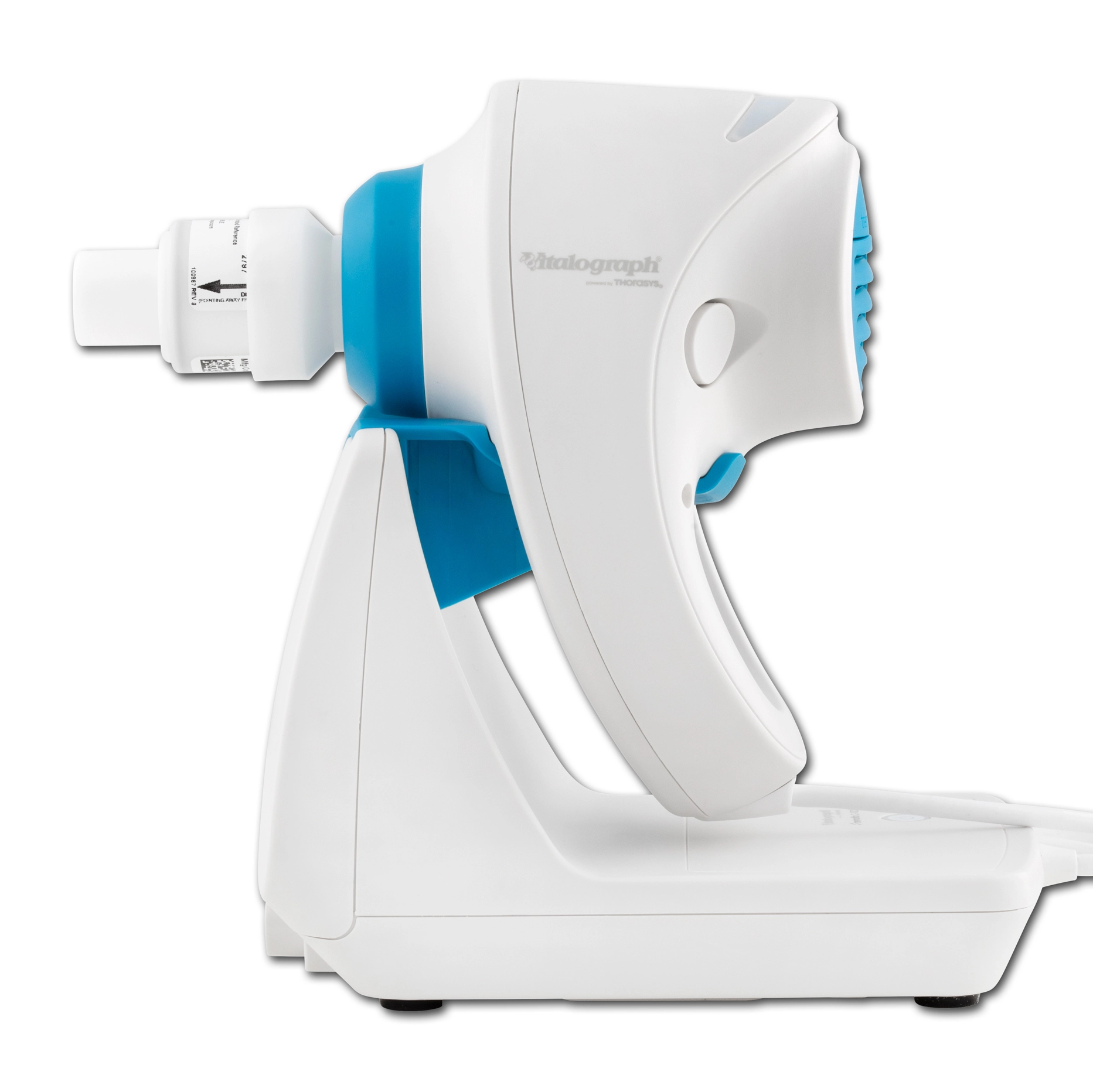

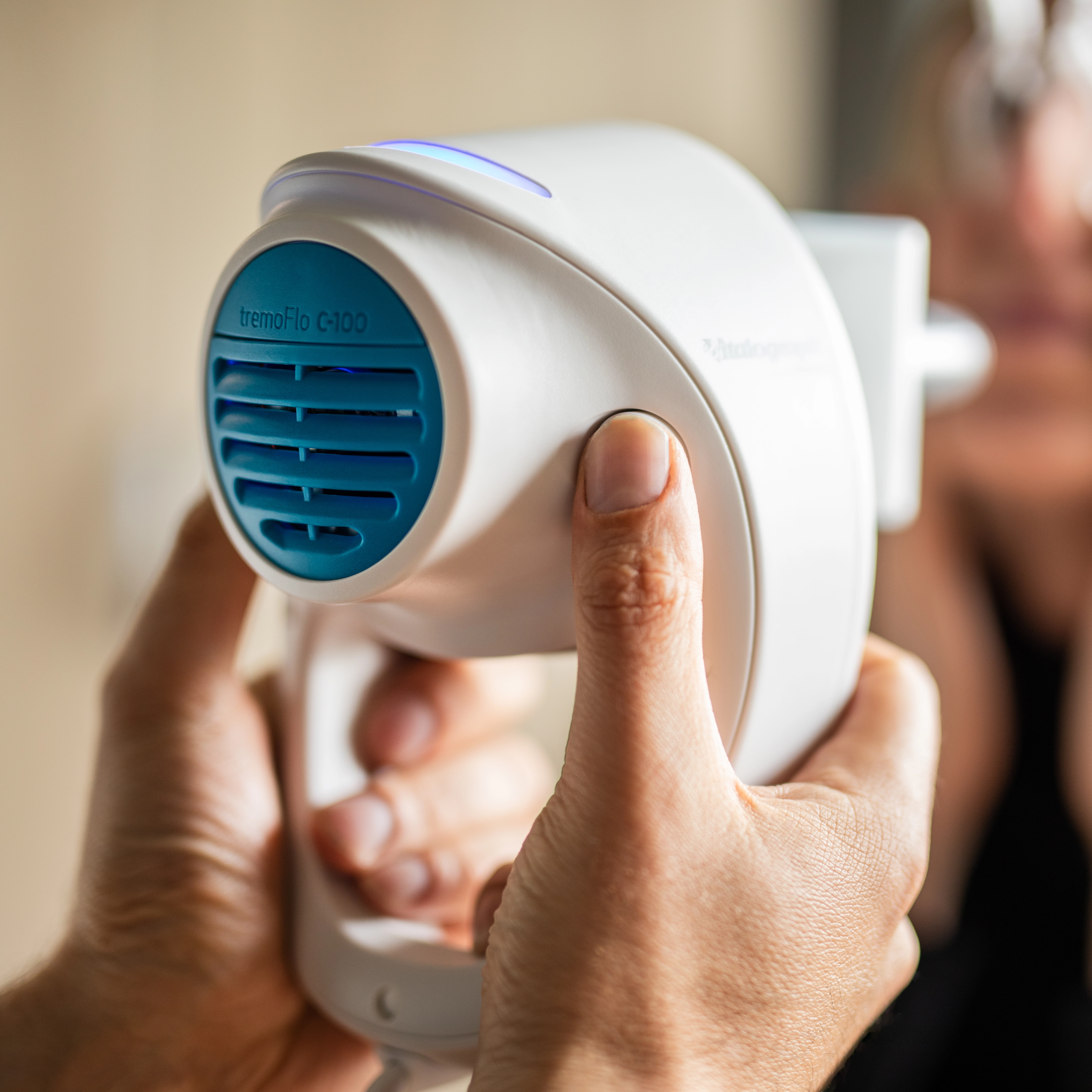

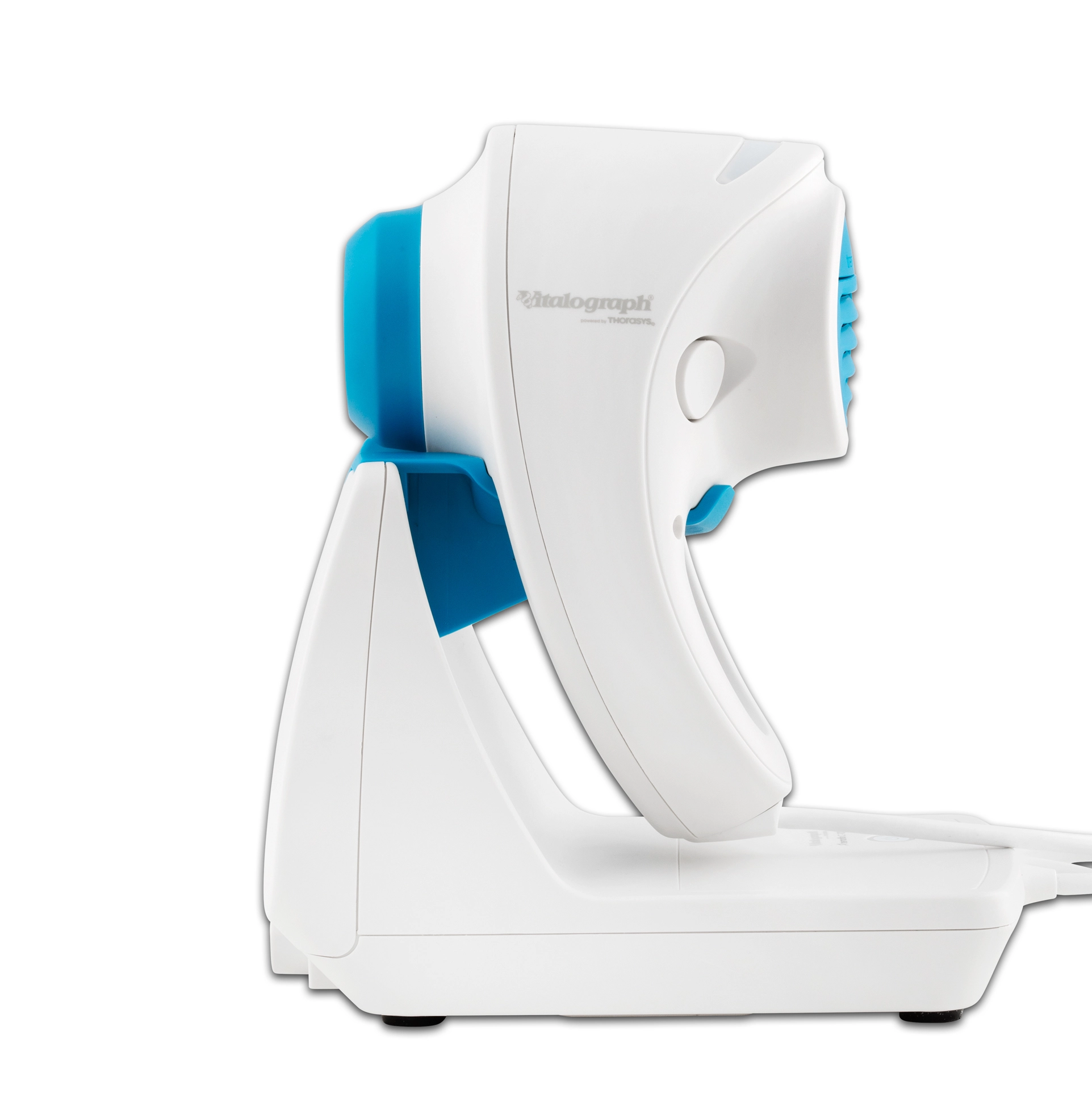

The Vitalograph tremoflo C-100 enables AOS testing in any environment. Portable, and easy to use, it provides accurate and detailed information about small airwave dysfunction at the click of a button.
The Vitalograph tremoflo C-100 uses airwave oscillometry (AOS) to provide detailed information about small airway dysfunction. Fully compatible with Vitalograph diagnostic software, oscillometry results are collated with spirometry data empowering a multi-faceted approach to respiratory health decision-making.
Being able to bring AOS to different testing environments such as bedside and clinics gives greater access to a broad range of respiratory diagnostics. A blend of respiratory diagnostics that includes oscillometry enables certain respiratory conditions, such as asthma and COPD, to be diagnosed and treated at the earliest opportunity and for disease progression to be carefully monitored.
Impedance Parameter* | Abbr. | Units | Indicative of |
---|---|---|---|
Resistance at 5 Hz or 7 Hz | R5 , R7 | cm H2 O.s/L | Overall respiratory system resistance |
Frequency dependence of Resistance, 5 - 20 Hz or 7 - 20 Hz | R5 - 20 or R7 - 20 | cm H2 O.s/L | Heterogeneity of airway obstruction |
Reactance Area | AX | cm H2 O.s/L | Small airway obstruction |
*Additional parameters available. Please contact your local distributor for more information
Product code: XXXXX
Accurate
AOS technology is highly sensitive in measuring respiratory impedance.
Accurately measures all standard oscillometry parameters including R5 , R5-20, X5 and AX
Portable and versatile
Lightweight and portable for AOS assessment in diverse settings.
Easy cable connection to laptop or pc for instant testing assessment
Integrated respiratory diagnostics
Seamless connection with Spirotrac respiratory diagnostic software for rapid assessment and analysis.
Centralise diagnostic data on one platform for a detailed picture of a patient's lung health.
Comfortable and hygenic
Test requires simple tidal breathing.
Single-use Vitalograph Bacterial Viral Filters (BVF™) with validated cross-contamination efficiency >99.999% protect device, patient, and operator.
Vitalograph tremoflo C-100 | |
---|---|
Model Number | |
Measurement principle | Oscillometry (Forced Oscillation Technique, FOT) |
Oscillator technology | Breathe-through vibrating mesh (patented) |
Measurement modes | Airwave Oscillometry: pseudo-random noise |
Measurement duration | 20 Sec (min.), user adjustable 3 repetitions (as per guideline) |
Patient interface | Bacterial Viral Filter (BVF) with integrated mouthpiece |
Dimensions & weight: | 19 x 13 x 14 cm, 0.7kg (handheld only) 21 x 14 x 24 cm, 1.7kg (handheld & cradle) |
Performance | Meets and exceeds ERJ 2003, 22: The forced oscillation technique in clinical practice: methodology, recommendations and future developments |
Does the Pneumotrac require cleaning?
AddWhere a new BVF is used for each subject, only the flowhead which comes into contact with subjects being tested requires low level cleaning. For cleaning instructions refer to Hygiene & Cleaning Instructions
Will the Pneumotrac integrate into my patient management system?
AddYes, the Pneumotrac comes with Spirotrac software and Vitalograph Connect which supports HL7 protocols. Talk to us for more information.
What are the running costs for the Pneumotrac?
AddRunning costs are low for the Pneumotrac as no expensive disposable sensors, turbines, adaptors or flow tubes are required. The simple, validated hygiene system using Bacterial Viral Filters means that keeping
the device clean is easy and inexpensive.
Does the Pneumotrac spirometer require calibration?
AddNo, the Pneumotrac spirometer does not require full calibration. ATS/ERS 2019 Technical Standard recommends a simple calibration verification routine be undertaken daily on all spirometers, regardless of flow technology. A calibration verification is not to be confused with calibration.
