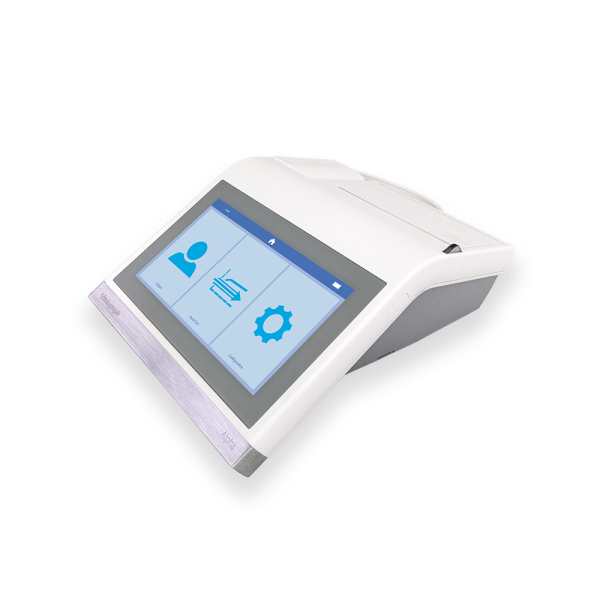

New Alpha Spirometer – Now Available and FDA Approved!

Highly portable lightweight all-in-one desktop spirometer and printer. Easy to use and no PC required.

Designed for testing on the go, remotely or in a clinic, the Alpha is our ultimate desktop spirometry solution.

The new Alpha encompasses compliance with the ATS/ERS 2019 spirometry guidelines, multiple testing options, quick loading integrated thermal printer and direct links to Vitalograph Device Studio to generate PDF reports. Vitalograph Connect provides versatile connectivity to your electronic medical records via HL-7 and GDT, taking spirometry testing to the next level.  Features a 7” high-resolution touch-screen and a redesigned intuitive user friendly interface.

The Alpha Spirometer comes with:

  • Vitalograph Device Studio
  • Vitalograph Connect
  • USB cable
  • Ethernet cable
  • Medically approved power supply with country specific plug
  • Carry case

Get certified device training via our online training resource SpiroTutor™ by Vitalograph® which is available 24/7. We provide one FREE enrollment with the registration of your ALPHA device.  A training certificate is issued upon completion.

Comes with 5-Year Warranty with unlimited technical support if registered within 30-days of purchase.

Reimbursement codes for Vitalograph Devices in the USA.

Product code: 69002

  • Meets 2019 ATS/ERS standardization of spirometry update.
  • Supports full feature Spirometry Testing and Bronchodilator Responsiveness Testing with over 50 available parameters.
  • Utilising proven, highly accurate, robust, and stable flow measuring technology.
  • Fast integral thermal printer – No PC required.
  • Lowest running costs & environmentally friendly: no need for costly disposable sensors, turbines, spirettes or flow tubes.
  • Save time & money on cleaning using Vitalograph BVFs with validated cross-contamination efficiency >99.999%, protecting the device, patient, and operator.
  • Instant quality feedback using the latest test/session acceptability, usability and repeatability criteria.
  • Automatic interpretation based on ATS/ERS & GOLD standards.
  • Ensure accurate results with quick and easy calibration verification routines recommended by 2019 ATS/ERS spirometry guidelines.
  • Fast evaluation of results using latest GLI spirometry predicted equations with LLN, %Pred and Z-scores. Other predicted equations are selectable.
  • Direct connectivity with Vitalograph Device Studio to generate PDF reports and receive the latest firmware updates.
  • Share test data easily with compatible Electronic Health Records (EHR) and Electronic Medical Records (EMR) systems through HL7, GDT.
Vitalograph ALPHA, model 6000
Flow Detection Principal Fleisch flow technology
Essential Performance Test Limits Flow Accuracy ±10% or ±20 L/min, whichever is greater
Volume detection Flow integration sampling @ 100Hz
Maximum displayed volume 10 L
Volume accuracy Better than ±2.5%
Voltage/Frequency Power Supply: Input 100-240V, 50/60HZ, Output 12V, 1.5A, Battery: 7.2V, 2.2Ahr
Performance standards met or exceeded by Vitalograph ALPHA ATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009
QA/GMP standards EN ISO 13485, FDA 21CFR820, SOR/98-282 & JPAL, MDSAP
Dimensions 204 mm (length) x 253 mm (width)
Weight 1.5 kg net
Power Supply 12V, 1.5A DC power supply 7.2V, 2.2AHr NiMH battery

Product Specification

  ALPHA ALPHA Touch ALPHA Touch with Spirotrac
Post BD
Total Parameters Available 9 56 60
Quality Measures & Incentives:
Predicted Values
Quality Prompts
Data Exchange & Printing:
In-Built Printer
PDF Reports (V=Vitalograph Reports, S=Spirotrac) V V S/V
Bi-directional Data Exchange with EMRs
General Features:
Touch Screen
Color Display
Internal Battery
Full Database


Where a new BVF is used for each subject, only the flowhead surface which comes into contact with subjects being tested should require low level cleaning.   For cleaning instructions refer to our Alpha Cleaning Instructions.

The interior of a flowhead does not require decontamination where a new BVF is used for each subject.  However, if there is a possibility of contamination, it is possible to decontaminate the flowhead following our Alpha Cleaning Instructions.

You have the ability to perform a simple calibration verification routine prior to undertaking testing, in accordance with international spirometry standards and guidelines (ATS/ERS).

FVC Test: VC, FVC, FIVC, FIVC/FVC, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV1, FEV1R, FEV1/VC, FEV1/EVC, FEV1/IVC, FEV1/FVC, FEV1/FIVC, FEV1/FEV6, FEV1/PEF, FEV3, FEV3/VC, FEV3/FVC, FEV6, PEF L/s, PEF L/min, FEF25, FEF50, FEF75, FEF0.2-1.2, FEF25-75, FEF25-75/FVC, FEF75-85, FIV1, FIV1/FVC, FIV1/FIVC, PIF L/s, PIF L/min, FIF25, FIF50, FIF75, FIF50-FEF50, FEF50-FIF50, MVVind, FMFT, FET, FRC, TV, RV, TLC, IRV, ERV, IC, Rind, ELA, tPEF, Text, EV, EV/FVC.

Running costs are low for the Alpha as no expensive disposable sensors,  adaptors or flow tubes are required. The simple, validated hygiene system using Bacterial Viral Filters means that keeping the device clean is easy and inexpensive.

The Alpha comes with 2 spare rolls of thermal printer paper. Replacements are available in packs of 10 rolls. This ensures you never run short, at a cost effective price point, when ordered directly from Vitalograph.
