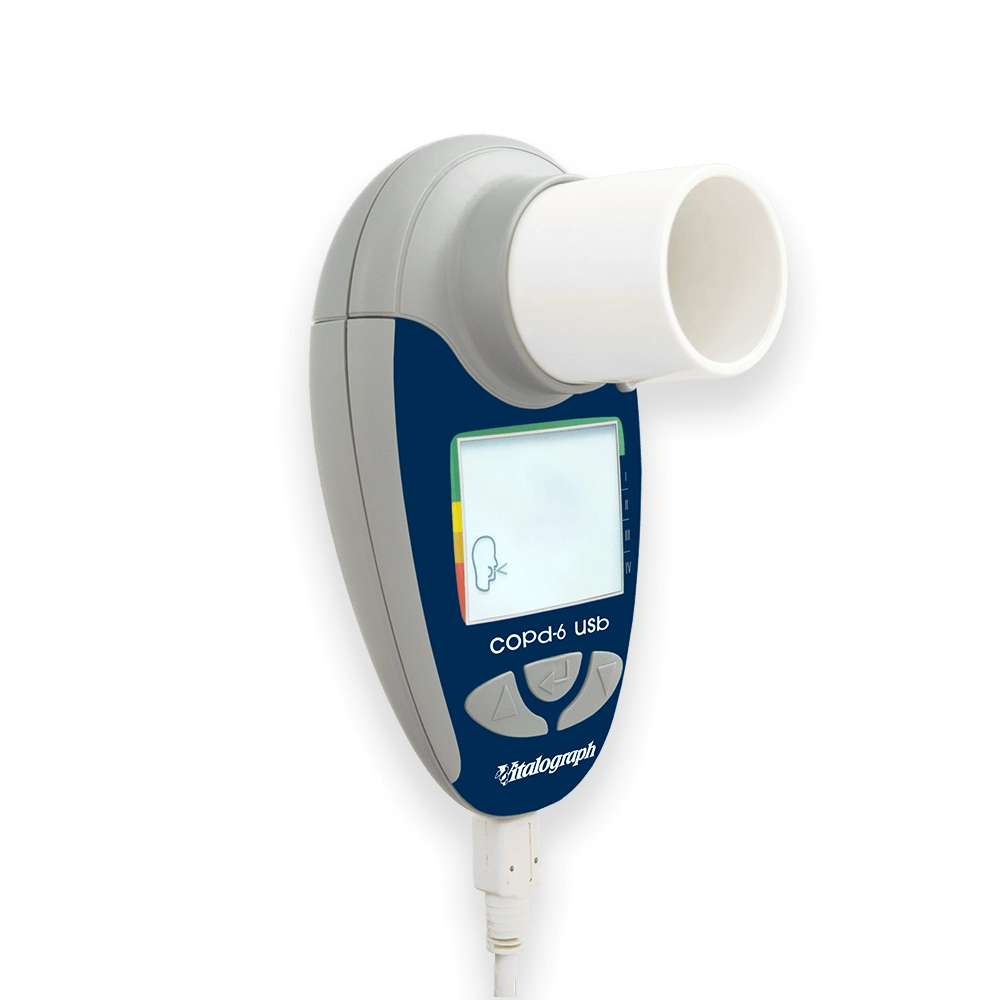

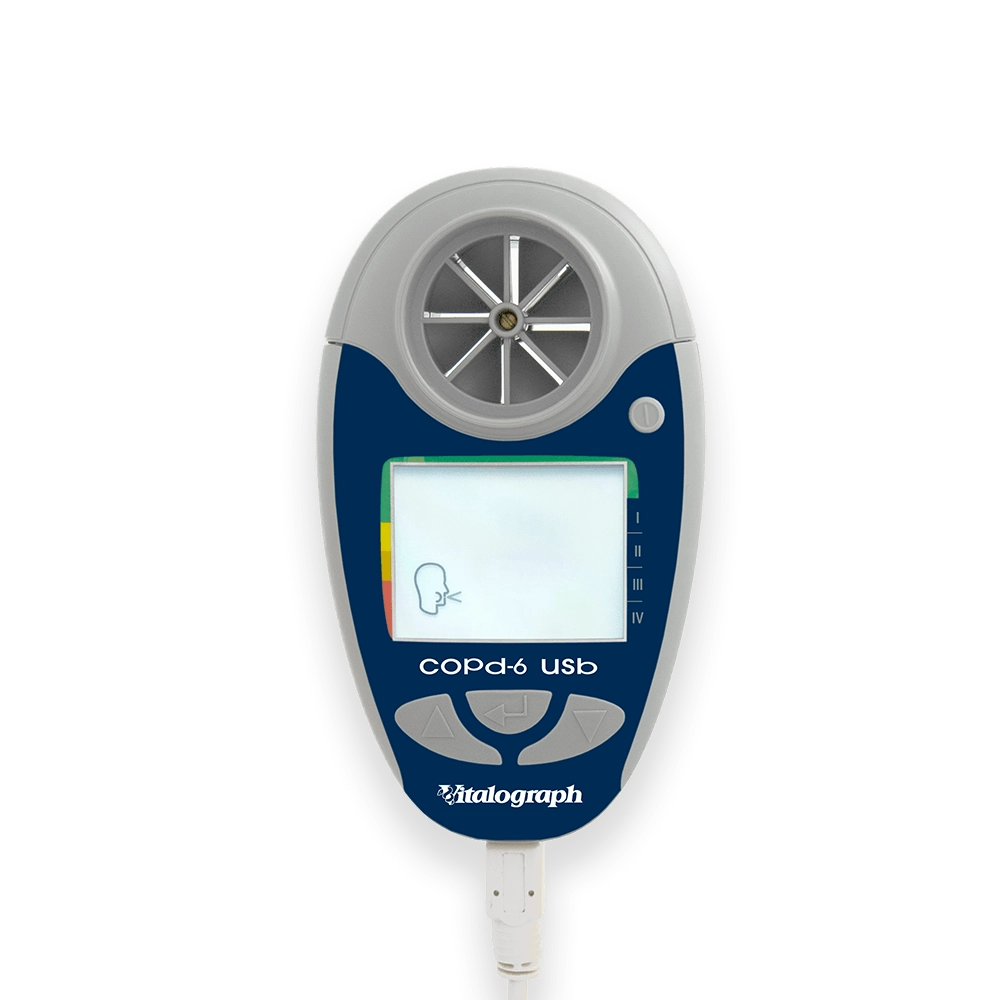

copd-6 USB Screener
Handheld device with USB connectivity, for COPD screening
The Vitalograph copd-6™ BT identifies those at risk of COPD at the pre-symptomatic stage, screening out those whose FEV1 is normal. The screener allows early medical intervention and facilitates better clinical outcomes.
Generates reports via USB connection and Vitalograph Reports software.
Monitors COPD patients using their obstructive index – FEV1 as a percent of predicted
Displays FEV1, FEV6, ratio, COPD classification and lung age
Automatically sends data after each blow
Can also send session data
Large, easy-to-read display
One of our 4000 Series of respiratory monitors and screeners, the COPD-6 Monitor comes with:
Pouch
Instructions for Use
Vitalograph Reports Software
2 x AAA Batteries
Vitalograph provides free certified training for all of its respiratory diagnostic solutions. Register here.
Click here for reimbursement codes for Vitalograph Devices in the USA.
Product Code: 40451_TH
- Facilitates 'case selection' so that spirometry can be focused on those likely to be diagnosed with COPD.
- Screens out anyone with normal FEV1 without the risk of false COPD negatives.
- Monitors COPD patients using their obstructive index which is FEV1 as a percent of predicted.
- Displays FEV1, FEV6, ratio and % predicted, obstructive index, COPD classification and lung age.
- Built-in quality of blow indicator.
- Displays the GOLD COPD classification (stage I - IV) to help identify the need for a change in the patient's management plan.
- Requires only minimal instruction for use by non-respiratory specialists.
- Suitable for use with Bacterial Viral Filters (BVF™) providing 99.999% cross-contamination efficiency.
| Respiratory Monitor COPD-6 USB | |
| Model | 4000 |
| Dimensions | 109mm (length) x 63mm (width) x 42mm (height) |
| Flow Detection Principal | Stator rotor |
| Accuracy | Better than ± 3% |
| Measurement Range | 0 – 9.99 L BTPS |
| Power Supply | 2 x AAA batteries |
| Battery Life | 3 months of use, 3 tests per day |
| Quality Check | Slow start of test (Vext>5%) or a cough detected in the first second |
| FEV substituted for FEV6 | When FET < 3s and abrupt end of test |
| Performance Standards | ATS/ERS 2019 Technical Standards, ISO 23747:2015, ISO 26782:2009 |
| QA/GMP Standards | EN ISO 13485, FDA 21 CFR 820, MDSAP. |
| Communications | USB2.0/3.0 |
| PC Requirements for Vitalograph Reports | Windows® 7, Windows® 8 or Windows® 10 |
| Auto Power Down Time | 2 minutes |
| asma-1 | asma-1 Child | asma-1 USB/BT | COPD-6 | COPD-6 USB/BT | lung monitor | lung monitor USB/BT | lung monitor BT Smart | lung age |
|---|---|---|---|---|---|---|---|---|---|
PEF | ✓ | ✓ | ✓ | ✓ | |||||
FEV1 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
FEV6 | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
FEV1 Ratio | ✓ | ✓ | ✓ | ✓ | ✓ | ||||
FEF25-75 | ✓ | ✓ | |||||||
FEV0.5/0.75 | ✓ | ✓ | |||||||
Lung Age | ✓ | ✓ | ✓ | ||||||
Memory | 600 | 600 | 600 | 0 | 0 | 200 | 200 | 200 | 0 |
Personal best | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||
GOLD | ✓ | ✓ | |||||||
PDF Reports | ✓ | ✓ | ✓ | ||||||
Import Data to SpV | ✓ |
FAQs
Can I use a Bacterial Viral Filter (BVF) with the copd-6 USB?
AddA BVF is recommended to use if the copd-6 USB is intended for in clinic multi-subject use. The plastic mouthpiece supplied with the device can be used where the device is intended for single-subject use. For subject groups with excessive sputum production, a BVF can be used to protect the device flowhead from exhaled particulate matter where this may be a concern.
What does the quality of blow indicator detect?
Add(!) appears after a blow if a cough is detected in the 1st second.
How do you clean the copd-6 USB screener?
AddIf a new BVF is used for every test and the copd-6 USB is stored in a clean, dust free environment, then the device should require only surface cleaning using a 70% isopropyl alcohol wipe. Full instructions available at Model 4000 – Hygiene & Cleaning Instructions.
Can the copd-6 USB connect with my phone/tablet?
AddNo, but results can be entered manually.
To connect to a supported mobile App, you would require the lung monitor BT Smart.
