Powerful and flexible diagnostic workstation software, with the ability to integrate with EMR systems.
Vitalograph Spirotrac® 6 is a powerful and flexible diagnostic workstation software, with the ability to integrate test results with electronic medical record (EMR) systems. Suitable for general healthcare and occupational health environments.
Featuring a new user interface design based on customer feedback, Spirotrac is now even more intuitive and easy-to-use. It allows you to consolidate Spirometry, Respiratory Muscle Strength (RMS), ECG and Oscillometry through a single, flexible, and powerful application solution. Filing and storing results could not be simpler with fast connection to your EMR system.
Spirotrac 6 is compliant with the latest ATS/ERS 2019 guidelines and is compatible with the new range of Vitalograph products including the PC based Pneumotrac™ for spirometry, Pneumotrac RMS for respiratory muscle strength and the Vitalograph tremoflo® C-100 for oscillometry.
Product Code: 70902
Spirometry
VC, FVC, Bronchodilator Responsiveness Testing and Challenge Testing.
Uses recommended latest NHANES and GLI spirometry predicted equations with LLN, %Pred and Z-scores for accurate assessment of abnormality.

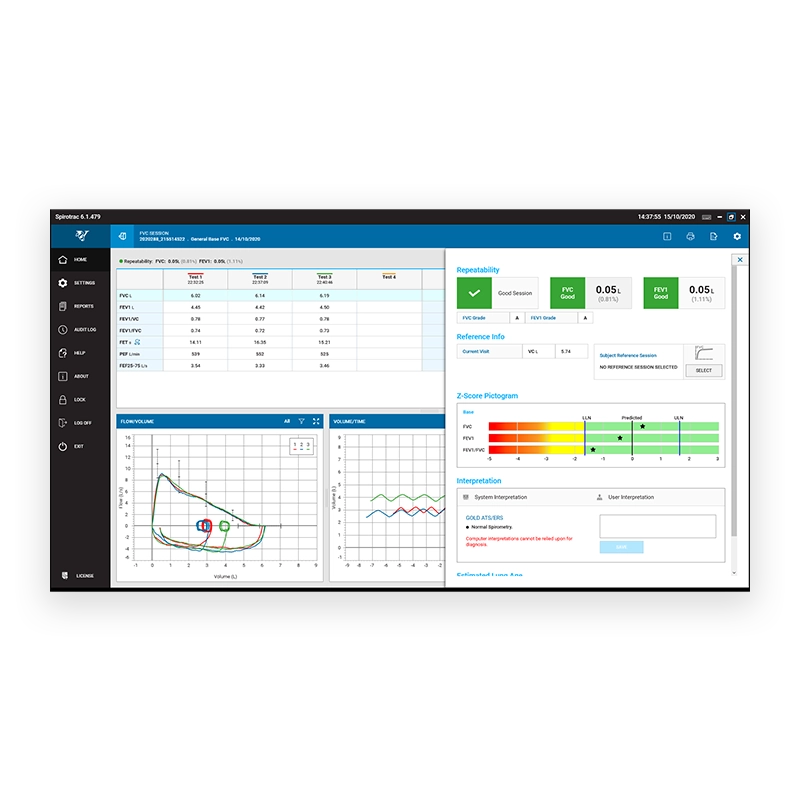

Achieve the best possible results with enhanced quality assurance:
Featuring ATS/ERS 2019 grading system for acceptability
Live onscreen repeatability feedback (volume and percent)
Z-score pictogram for fast and easy comparison of results to predicted values
High quality incentives to help improve subject cooperation and performance
New filtering options for graphs allow the operator to select which trials to display (Show All, Show Best, Show Best 3, Show Best and Last)
Automatic interpretation based on latest ATS/ERS & GOLD standards
Save time and ensure consistency using the Standardised Operator Comments to quickly add review comments to the subject record.
Monitor historical changes in lung function by comparing results and view trends over time.
Respiratory Muscle Strength Testing
Real-time display of pressure/time curves with the Pneumotrac RMS.
Assess diaphragmatic weakness, assess respiratory muscle strength and monitor the response of respiratory muscle training with our full range of respiratory diagnostic tests:
Maximum Inspiratory Pressure (MIP)
Maximum Expiratory Pressure (MEP)
Sniff nasal inspiratory pressure (SNIP)
Upright and Supine Spirometry (VC and Post VC)
Peak Cough Flow (PCF)

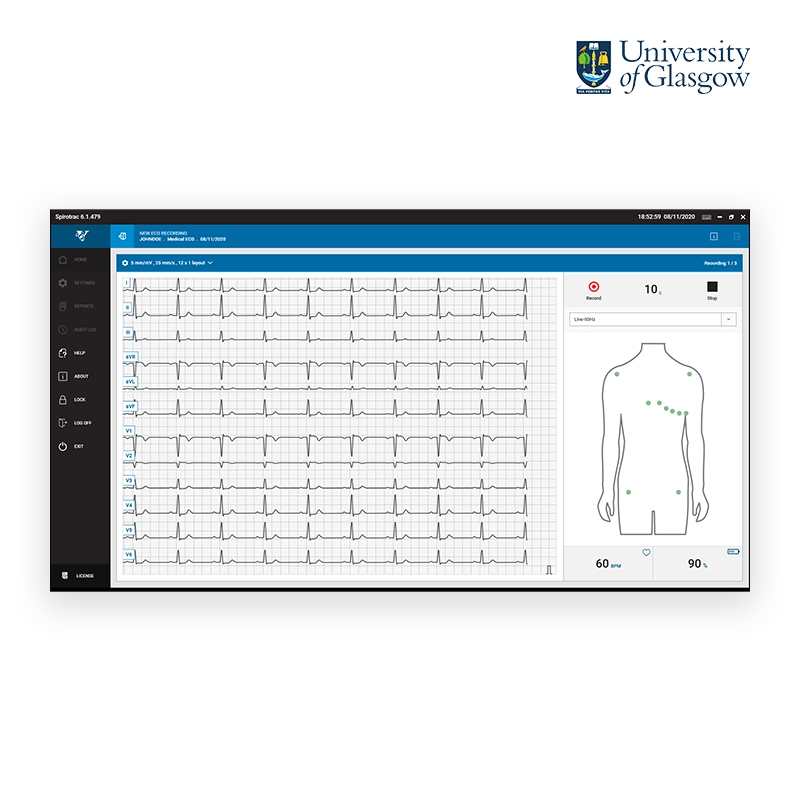

12-lead Resting ECG
Accurate and detailed results based on University of Glasgow interpretation algorithm.
Transmits ECG traces wirelessly reducing lead artifact.
Display ECG trace in real-time with multiple options for viewing and printing.
Consolidate your data from other Vitalograph Devices.
Subject data can be uploaded to the device from Spirotrac 6 saving the end user precious time from re-entering subject information. Spirometry test data can be downloaded from the device to Spirotrac 6 for trending, detailed reporting, and centralisation.
Oscillometry
Detect the presence of small airway impairment using the Vitalograph C-100 oscillometry device which is integrated in the Spirotrac 6 platform.
Collate and manage all respiratoy diagnostic data through one interface to obtain a complete clinical picture of a subject’s respiratory health.

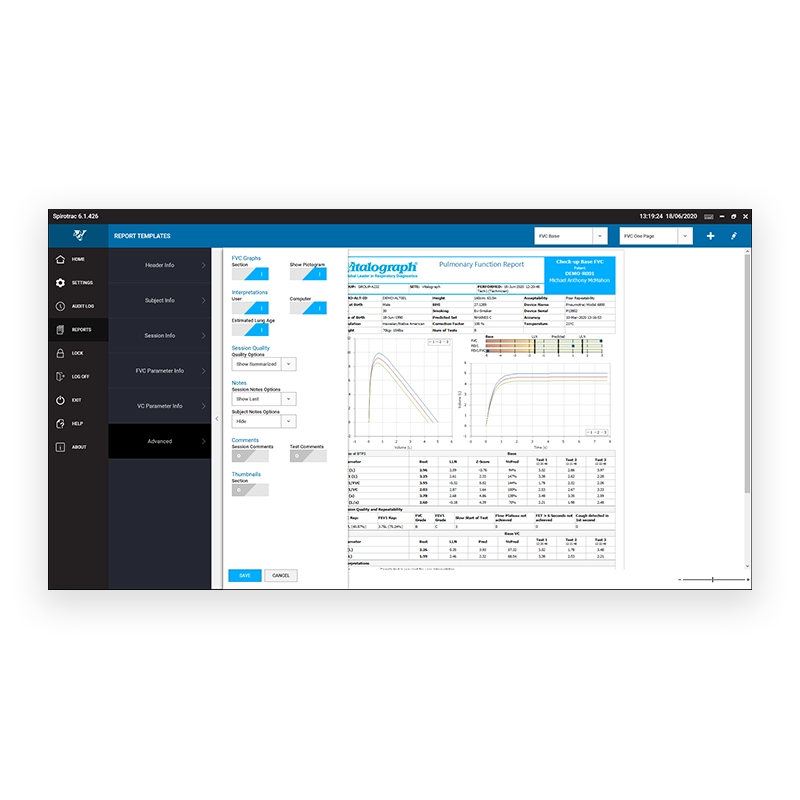

Configurable Reports
Customize reports and choose which parameters to display.
Advanced database
Create and assign subjects to groups, perfect for multiple test sites and Occupational Health
Vitalograph Connect
Middleware software linking EMR systems with Vitalograph products including Spirotrac.
Eliminate errors and improve workflow with subject details automatically transferred from clinical system to Spirotrac.
Enhanced data safety.
Save precious time as read codes and test reports (PDF format) are automatically filed to the correct subject’s medical record. No need to scan reports!
Updates
Spirotrac software is constantly updated with new features and benefits. To find out the latest additions, and for a complete history of updates click here.
Product | Vitalograph Spirotrac |
---|---|
Model | 7000 |
Performance Standards & Guidelines | ATS/ERS 2019, ISO 23747:2015 & ISO 26782:2009 |
QA/GMP standards | EN ISO 13485, FDA 21 CFR 820, CMDR |
|
|
Test Types Supported | Spirometry: Single breath testing, multi-breath testing, tidal breathing. VC, FVC, PCF, Bronchodilator Responsiveness and Challenge Testing. Respiratory Muscle testing: MIP, MEP, SNIP ECG: 12 lead 10 second trace |
Oscillometry Parameters | R5, R7, R5-20, R7-20, AX, VT |
FVC Parameters | FVC, FEV1, FEV6, FEV1/FVC, FEV1/FEV6, FEV1 Ratio, PEF (L/s), PEF(L/min), FIVC, PIF (L/s) , PIF (L/min), EF25-75, TV, IRV, ERV, IC, EV, TExt, TPef, FET, FEV.5, FEV.5/FVC, FEV.75, FEV.75/FVC, FEV3, FEV3/FVC, FEV6/FVC, FEF0.2-1.2, FEF75-85, FEF2575/FVC, FEF25, FEF50, FEF75, FEV1/PEF, FIF25, FIF50, FIF75, FIF50/FEF50, FIVC/FVC, FIV1, FEV1/FIVC, FIV1/FIVC, FIV1/FVC, FEF50/FIF50, MVVind, EV/FVC, FMFT, IVC, FEV1/IVC, FEFmax, EOTV , FEV1/HT2, FEV1/VC, FEV3/VC, RAWind, RV, FRC, TLC, Lung Age, EOTV, THes, Rise Time |
VC Parameters | VC, IVC, EVC, TV, IC, ERV, TLC, FRC, RV |
ECG Parameters | HR[/min] HR[/min] Heart Rate RR[ms] R-R interval P[ms] Duration of the P wave PQ[ms] Duration of the PQ interval ST[ms] Duration of the ST segment PR[ms] Duration of the PR interval QRS[ms] Duration of the QRS complex QT[ms] Q-T interval QTc[ms] Q-T interval, corrected by the heart rate with options Fridericia, Framingham, Bazett and Hodges |
Predicted Values Selectable | GLI (Quanjer 2012), NHANES, ERS 93 |
Suggested Interpretation | ATS/ERS Gold |
Database | MS SQL server |
Device classification | IIa per Annex IX of the MDD |
EMR Connectivity | HL7, GDT |
Export Options | Pdf reports |
Import Options | Spirotrac V Database Migration |
Languages | English |

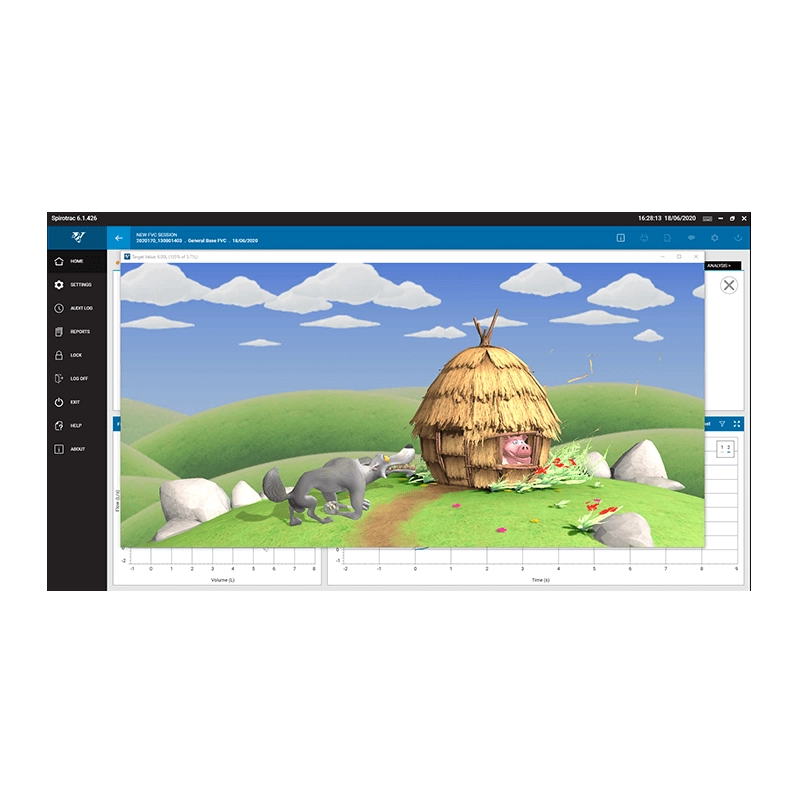

Incentives | Candles, Ball and Tube, Big Bad Wolf |
Trending | Automatic FEV1 trend. Additional parameters also available. |
Reporting | Comprehensive configurable PDF reports |
This tool is used to activate Vitalograph Spirotrac 6 software to unlock all features of the product and download software updates.
As experts in Respiratory Diagnostics, we are committed to providing our community with the latest in educational material.
All Vitalograph spirometers come with a host of free benefits that are activated when you register your device.
Free 5 year warranty upon device registration
New features and improvements, automatically
Online device training - unlimited, free, & forever
Expert support for Vitalograph users
Does the software support NIOX FENO?
AddYes, the Spirotrac software is integrated with the NIOX’s FENO device

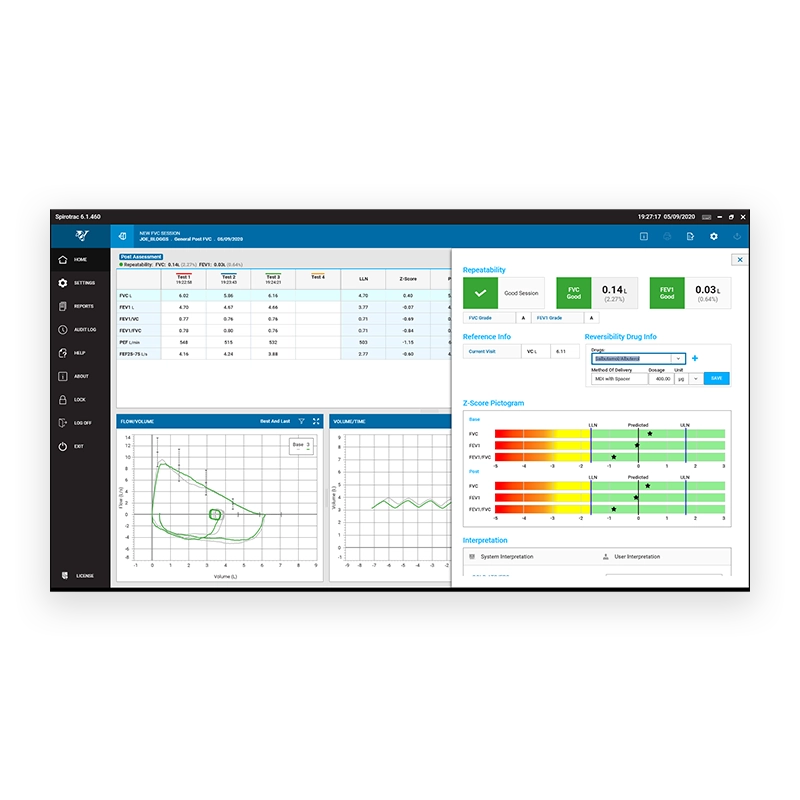

Can I perform a post VC session as well as a post FVC session?
AddYes. Post VC and Post FVC testing can take place with the option to include all Post data on one report.
Will Spirotrac® 6 integrate into my patient management system?
AddYes. Vitalograph Connect (included) supports major EMRs that use the HL7 specifications.
Can I configure the reports in Spirotrac 6?
AddYes a powerful reporting tool is included that makes it possible to configure a report to your own preferences using the supplied templates.
What computer-generated spirometry interpretation is used by Spirotrac 6?
AddAn interpretation based on a combination of ATS/ERS and GOLD standards is provided within Spirotrac.
