Overview

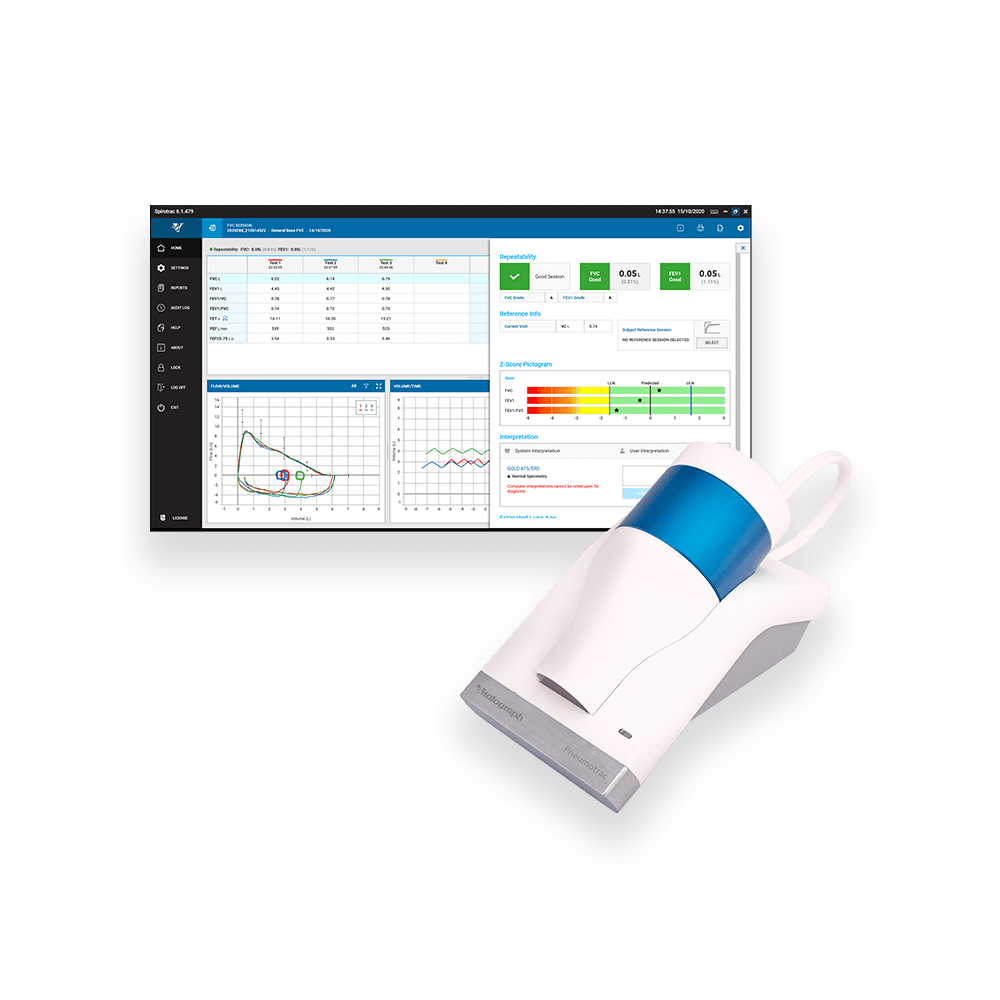

The next generation Pneumotrac™ Spirometer combined with Spirotrac® software is a powerful and flexible respiratory diagnostic device. It has an ergonomic design with no moving parts for optimal robustness. Compact and portable, the Pneumotrac has a reduced desktop footprint allowing spirometry testing to take place wherever your PC, laptop or tablet can go.

Suitable for testing both adults and pediatrics due to its fleisch-based V-Core™ flowhead technology which is accurate even at very low flow rates.

Pneumotrac with Spirotrac 6 software is compliant with the 2019 ATS/ERS Technical Standards, ensuring your testing service meets international guidelines on accuracy and reporting. Spirotrac 6 features an intuitive interface with advanced quality control feedback for rapid and easy testing. Compatible with all major EHR/EMR systems via HL7.

The Pneumotrac Spirometer comes with:

Spirotrac 6 Software (including HL7 connection kit)
Protective carry pouch
USB cable

This device comes with a Free 5-Year Warranty including unlimited technical support when registered within 30-days of purchase.

Vitalograph provides free certified training for all of its respiratory diagnostic solutions. Register here.

Click here for reimbursement codes for Vitalograph Devices in the USA.

Multiple testing options

Test Modules	Description	Parameters	Onscreen Graphs
Forced Vital Capacity	The total volume of air that can be exhaled during a maximal forced expiration effort.	FVC, FEV1, FEF25-75, PEF, etc	Flow/Volume/Time Volume/Time
Vital Capacity	The total volume of air that can be exhaled during a normal expiration effort.	VC, IC, IVC, TV	Bar Chart Volume/Time
Bronchodilator Responsiveness Testing	Determines the degree of improvement of airflow in response to bronchodilator administration as measured by changes in FEV1 and FVC	VC, FVC, FEV1, FEF25-75, PEF, etc	Pre-Post Flow/Volume Pre-Post Volume

Be free to help your patients perform Spirometry

The Pneumotrac has an integrated V-Core™ flowhead, allowing you to focus on helping your patients achieve their best spirometry test, confident that you are capturing accurate and reproducible results. Find out more about V-Core flowhead technology

Product code: 77902

	Vitalograph Pneumotrac
Model Number	6800
Flow Detection Principal	Fleisch flow technology
Volume Accuracy	Within ±2.5%
Flow Measurement Range	Max. flow rate ±960 L/min (±16 L/s) Min. flow rate ±1.2 L/min (±0.02 L/s)
PEF Accuracy	Within ±10%
Back pressure	Less than 0.1kPa/L/second @ 14L/s
Performance standards & guidelines	ATS/ERS 2019 Technical Standards, ISO 23747:2015 & ISO 26782:2009
Safety standards	EN60601-1:2006 + A1:2013, EN 60601-1-2:2015
QA/GMP standards	EN ISO 13485, FDA 21 CFR 820, SOR/98-282, Japan's PMD Act
Dimensions	160mm (length) x95mm (width) x 115mm (height)
Weight	550g
Power Supply	5V DC via USB
Spirotrac 6 Software Specification	Spirotrac 6 Software

FAQs

Does the Pneumotrac require cleaning?

Add

Where a new BVF is used for each subject, only the flowhead which comes into contact with subjects being tested requires low level cleaning. For cleaning instructions refer to Hygiene & Cleaning Instructions

Will the Pneumotrac integrate into my patient management system?

Add

Yes, the Pneumotrac comes with Spirotrac software and Vitalograph Connect which supports HL7 protocols. Talk to us for more information.

What are the running costs for the Pneumotrac?

Add

Running costs are low for the Pneumotrac as no expensive disposable sensors, turbines, adaptors or flow tubes are required. The simple, validated hygiene system using Bacterial Viral Filters means that keeping the device clean is easy and inexpensive.

Does the Pneumotrac spirometer require calibration?

Add

No, the Pneumotrac spirometer does not require full calibration. ATS/ERS 2019 Technical Standard recommends a simple calibration verification routine be undertaken daily on all spirometers, regardless of flow technology. A calibration verification is not to be confused with calibration.
